DNS Vulnerabilities
Introduction
The Domain Name System (DNS) is a fundamental component of the Internet, allowing for easy to remember domain names to be translated into IP addresses. While DNS was designed for scalability, speed, and reliability, it was not initially built with a strong focus on security.[1] This lack of security has led to vulnerabilities that are frequently exploited by attackers, necessitating continuous improvements and innovative defensive mechanisms [2] .
DNS Overview
DNS operates as a hierarchical and decentralized naming system that relies on multiple layers of servers—root servers, TLD servers, and authoritative DNS servers. These servers work together to provide the IP addresses associated with domain names.[2]

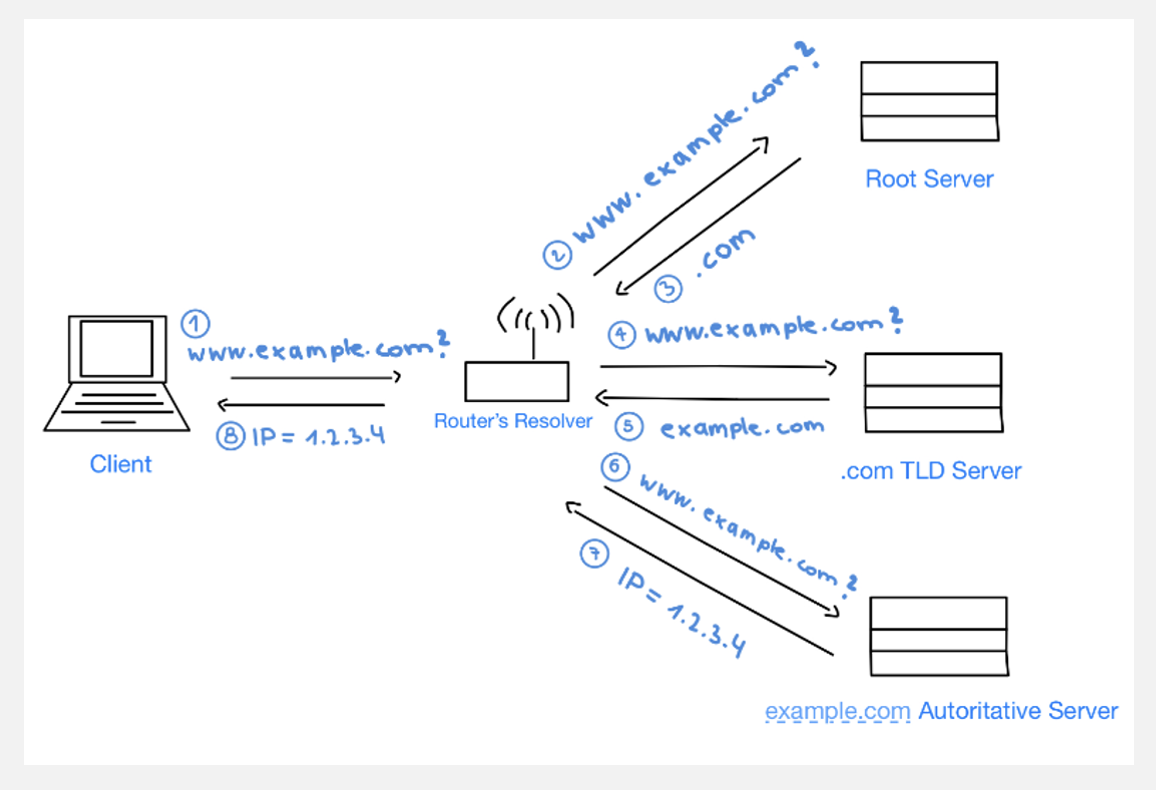

The process of DNS resolution is illustrated below.
How DNS Resolution Works
A client initiates a query to its local DNS resolver, asking for the IP address of a specific domain. If the local resolver does not have the answer cached, it forwards the query to a root server. The root server points to the appropriate top-level domain (TLD) server (e.g., .com, .at). The TLD server then refers the query to the authoritative server for the specific domain. Finally, the authoritative server provides the IP address of the domain, which is cached by the resolver for future use.[2]
DNS Vulnerabilities
DNS Cache Poisoning
Cache poisoning is a common attack method targeting DNS resolvers. Attackers inject fake DNS responses into the resolver's cache, redirecting users to malicious websites. By exploiting weaknesses such as predictable transaction IDs and static UDP source ports, attackers aim to impersonate legitimate DNS servers.
To successfully execute a DNS cache poisoning attack, the attacker must:
- Spoof the source IP address to match the legitimate DNS server.
- Correctly guess the transaction ID and UDP source port used in the original query.
- Inject the forged response before the legitimate server replies.[2]

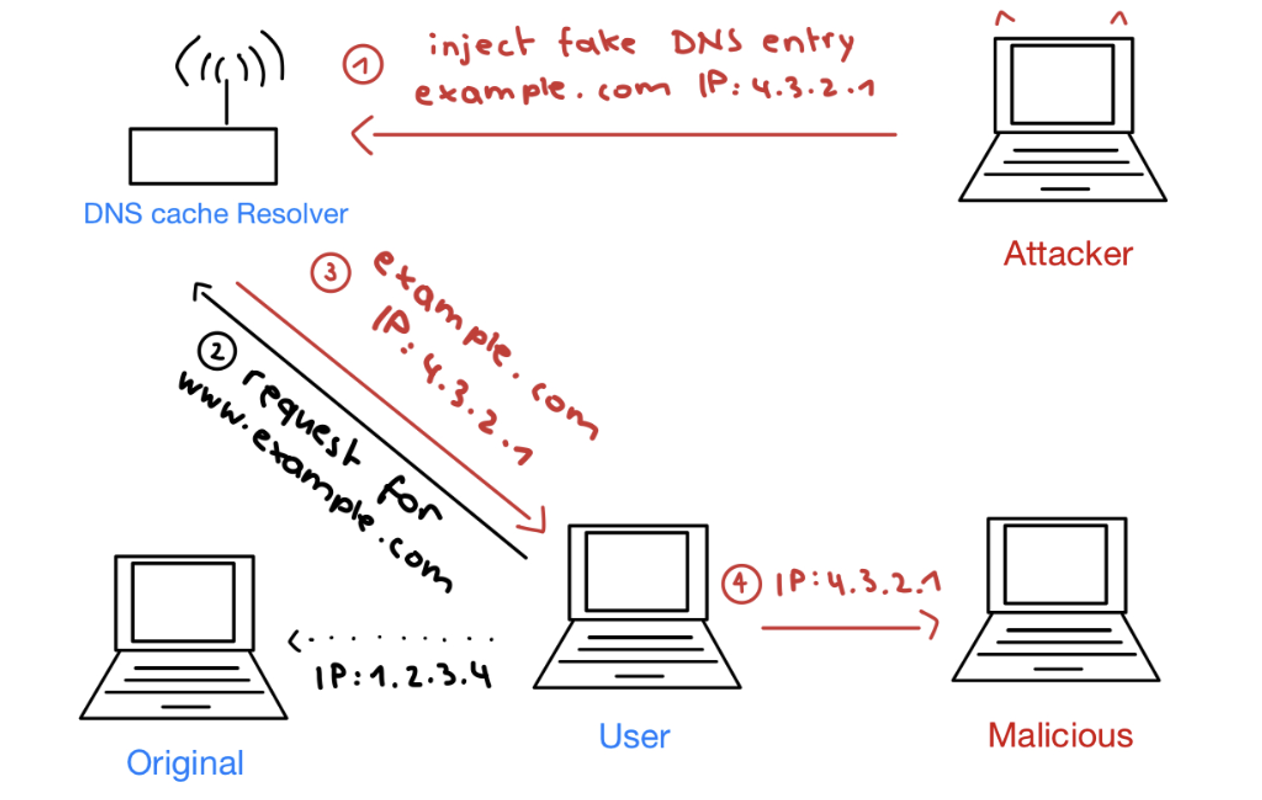

The mechanics of a DNS cache poisoning attack are depicted below.
Real-World Incident: Kaminski Attack
In 2008, Dan Kaminski demonstrated a vulnerability in DNS systems, now known as the Kaminski attack. At the time, most DNS resolvers used static source ports, significantly reducing the difficulty of cache poisoning. Kaminski showed that attackers could predict transaction IDs and ports, making it easier to inject forged responses.
Although modern DNS systems employ randomization for both transaction IDs and source ports, attackers must now guess 32 random bits (16 bits each for the transaction ID and source port), resulting in over 4 billion possible combinations.[4]
Countermeasures
To mitigate DNS vulnerabilities, multiple layers of defenses have been implemented. These can be broadly categorized into name server protections and resolver-based solutions:
Name Server Protections
- DNSSEC (Domain Name System Security Extensions): Introduced in 1997, DNSSEC ensures the integrity and authenticity of DNS responses through digital signatures. However, DNSSEC adoption has been slow due to challenges such as complex key management and deployment difficulties.
- DNSCurve: A lightweight alternative to DNSSEC, DNSCurve encrypts DNS queries and responses to protect against eavesdropping and manipulation. It offers faster performance but lacks DNSSEC's hierarchical trust model.
Resolver-Based Protections
- DNSCrypt: Encrypts DNS queries and responses, ensuring confidentiality between clients and resolvers. This is particularly useful for preventing on-path attacks.
- DNS-over-TLS (DoT): Encrypts DNS traffic using TLS, protecting against interception and amplification attacks.
- DNS-over-HTTPS (DoH): Encapsulates DNS queries within HTTPS traffic, making it harder to identify and block DNS queries.[1]
Conclusion
The DNS system remains a cornerstone of the Internet but continues to face significant security challenges. Vulnerabilities such as cache poisoning highlight the need for robust defenses, including DNSSEC, DoT, and other encryption-based technologies. However, securing DNS is an ongoing process, requiring collaboration between network operators, software developers, and end-users.
References
- ↑ 1.0 1.1 Giovanni Schmid. (2021). Thirty years of DNS insecurity: Current issues and perspectives. IEEE Communications Surveys & Tutorials, 23:2429–2459.
- ↑ 2.0 2.1 2.2 2.3 Aminollah Khormali, Jeman Park, Hisham Alasmary, Afsah Anwar, Muhammad Saad, and David Mohaisen. (2021). Domain name system security and privacy: A contemporary survey. Computer Networks, 185:107699.
- ↑ 3.0 3.1 Gross, Stella. (2024). Representations from [Aminollah Khormali, Jeman Park, Hisham Alasmary, Afsah Anwar, Muhammad Saad, and David Mohaisen. Domain name system security and privacy: A contemporary survey. Computer Networks, 185:107699, 2021] and were accordingly adapted by the author Gross, Stella.
- ↑ Dan Kaminsky. (2008). Black ops 2008: It’s the end of the cache as we know it. In Black Hat USA Conference. IOActive, Inc. Presented at Black Hat USA 2008.
